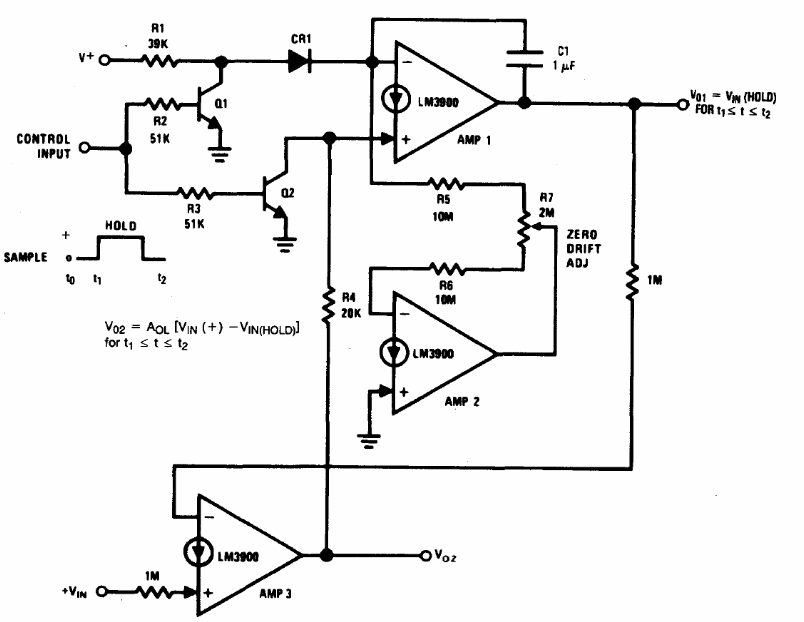

The circuit shown is suggested by National Semiconductor's Linear Applications Handbook. The base is an LM3900 operational amplifier and the transistors can be common types for general use. The power supply must be symmetrical.
| Clique na imagem para ampliar |
