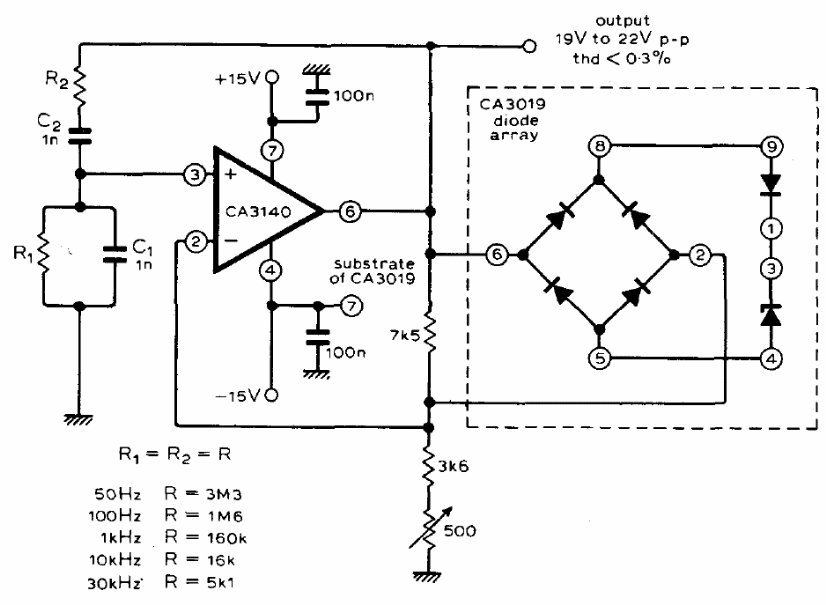

This circuit was found in a 1977 RCA documentation. The source must be symmetrical, but the voltage can be between 6 and 15 V. The diodes can be common if the CA3019 integrated circuit is not found. Next to the diagram are the R values for different frequencies.
