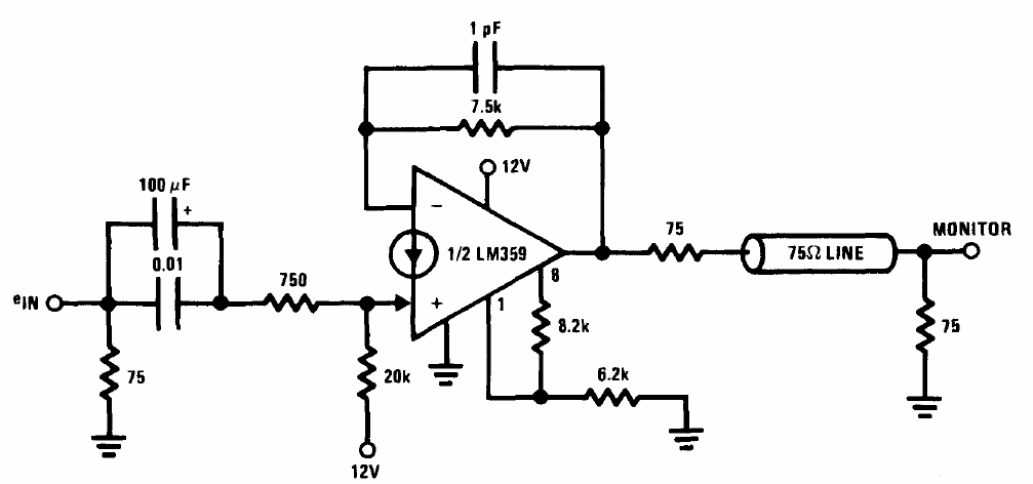

The circuit uses a fast Norton amplifier in a configuration that excites a 75 ohms line. The circuit is suggested by National's 1994 Linear Applications Handbook.
| Clique na imagem para ampliar |
Video Amplifier LM359 (CB14371E)
- Details
- Written by: Newton C. Braga
