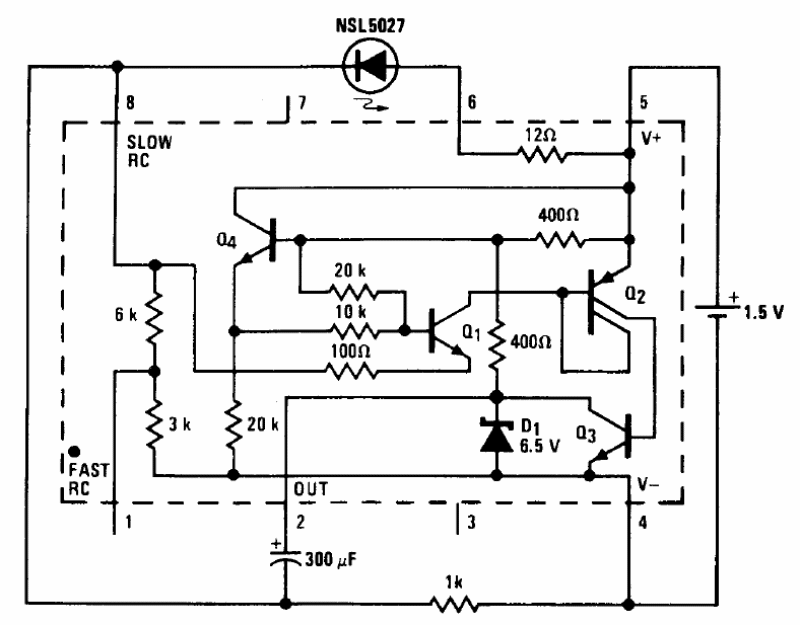

This circuit is suggested by National Semiconductor in its Linear Applications Handbook. The LM3909 integrated circuit consists of a very low consumption oscillator with a power supply of 1.2 V.
| Clique na imagem para ampliar |
Fast Flasher LM3909 (CB14278E)
- Details
- Written by: Newton C. Braga
