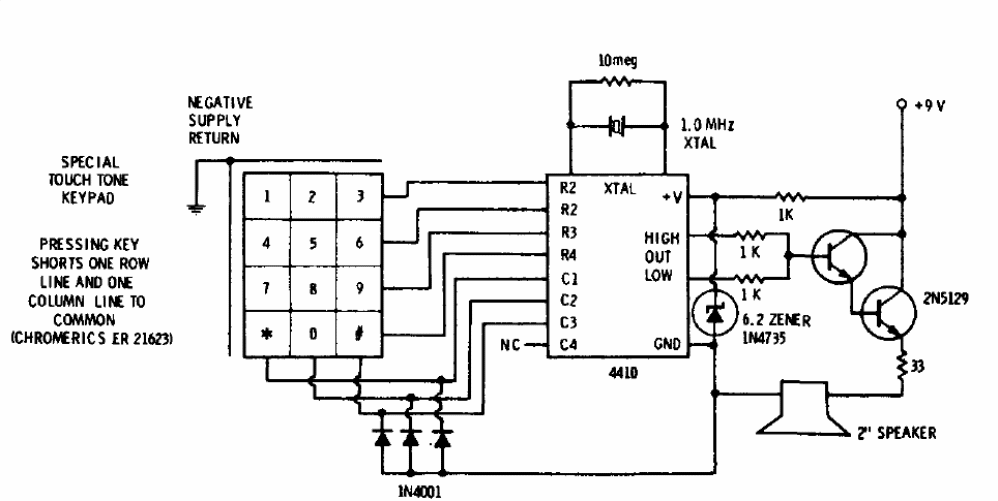

Telephone Tone Generator (CB13935E)

This double tone generator uses a specific integrated circuit, having been found in a 1977 CMOS Cookbook. The transistors can be the BC548.

| Clique na imagem para ampliar |
