Coaxial Cable Driver (CB14334E)

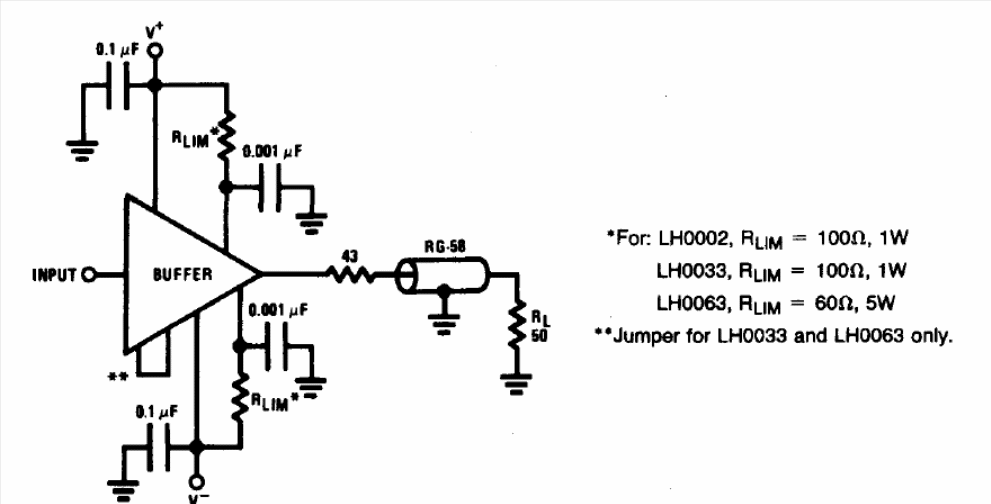

The circuit shown is based on National Semiconductor buffers and was found in the 1994 Linear Applications Handbook. The font must be symmetrical.

| Clique na imagem para ampliar |

Integrator LS141 (CB15192E)
This circuit is from the 1982 SGS linear integrated circuit manual. The LS141 is like to the 741...
FSK Demodulator (CB15902E)
The integrated PLL XFl2211 (Exxar) is used to decode data transmitted by tones R1, C1, C2 and C3...
Double Touch Switch (CB16980E)
This bistable touch sensor circuit uses a relay and is very sensitive. We found it in a 1990...
