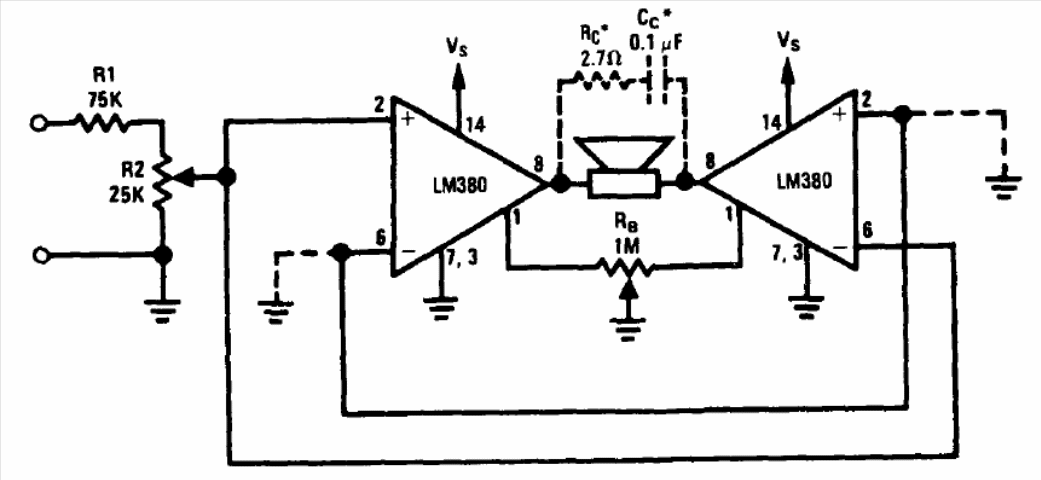

The circuit shown is from the 1994 Linear Applications Handbook by National Semiconductor. The maximum power is 7 W with a 8 ohms load and the power can be between 9 and 14 V.
| Clique na imagem para ampliar |
LM380 Bridge Amplifier (2) (CB14169E)
- Details
- Written by: Newton C. Braga
