We found this circuit in an old oscilloscope publication. With it, it is possible to observe the B / H curve (hysteresis) of an inductor in a common oscilloscope.
| Clique na imagem para ampliar |

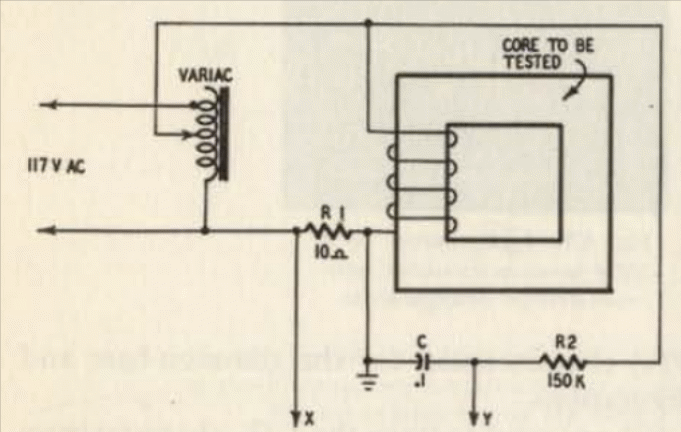

Circuit for Observing Hysteresis (CB13953E)
- Details
- Written by: Newton C. Braga
