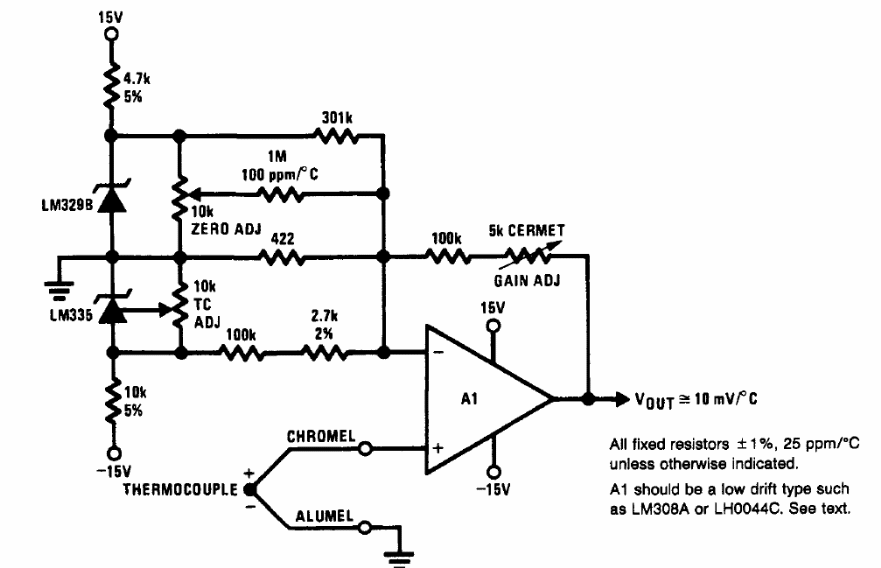

The presented centigrade thermometer shown uses a National Semiconductor sensor. The operational amplifier must be of a stable type (low drift). We found this configuration in the 1994 National Linear Applications Handbook.
