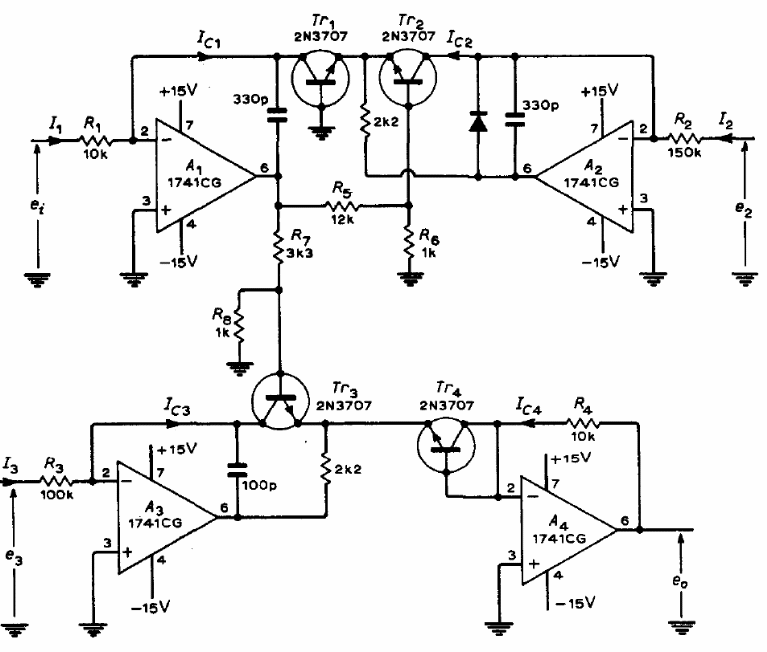

The amplitude of the output signal of this amplifier is proportional to the hub of the input voltage. The circuit is from 1973 documentation and the operational amplifiers are 741 powered by a symmetrical source. Transistors can be equivalent such as the 2N2222.
