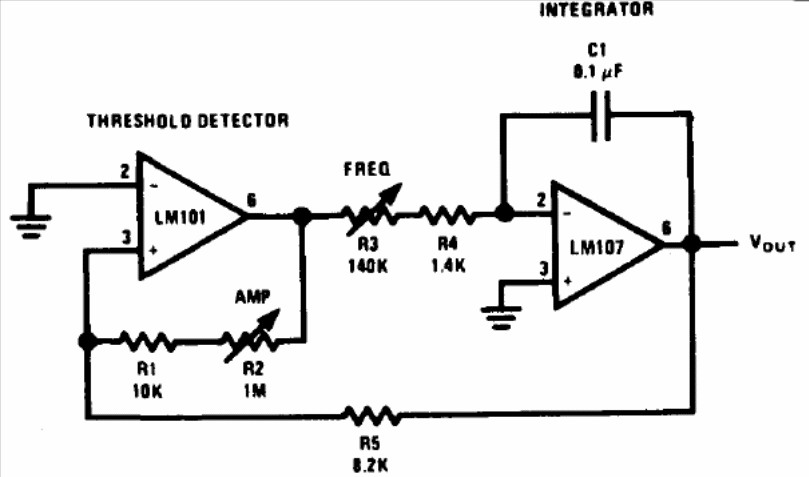

We found this oscillator in the 1994 National Semiconductor Handbook of Linear Applications. The circuit can be implemented with other operational amplifiers powered by a symmetrical source and the frequency is given by C1. The maximum frequency depends on the operational used.
