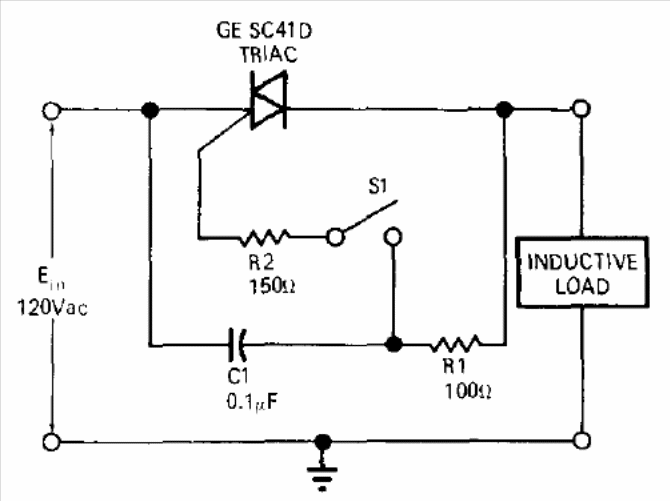

In the figure we have a way of using a Triac to control inductive loads. The capacitor must be made of polyester with at least 400 V working voltage. TIC series triacs can be used. The circuit is from old documentation. The Triac must be equipped with an appropriate heat sink.
