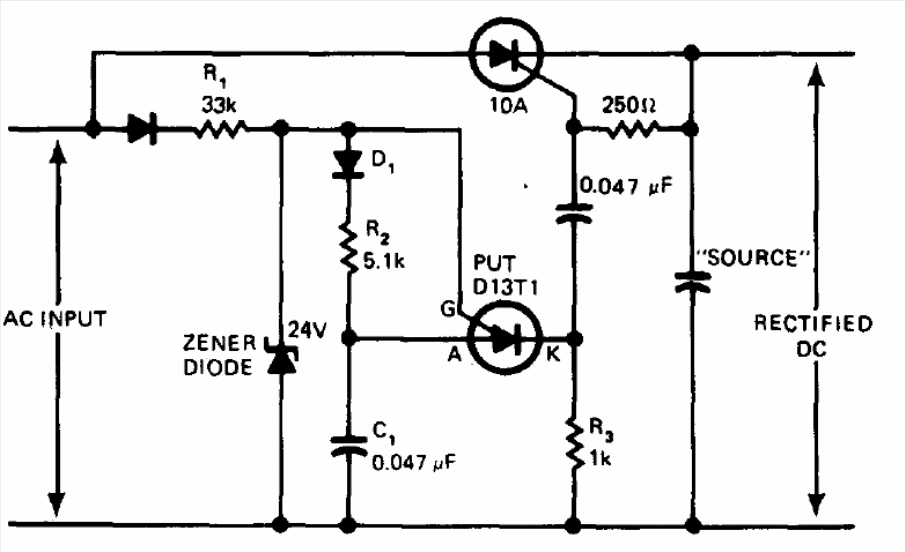

This circuit operates with input voltages from 50 to 140 V providing an output of 12 V under current up to 10 A. With the exchange of components, the circuit can work with other voltages and currents. The circuit is from a documentation from the 70s.
| Clique na imagem para ampliar |
