15 V Voltage Stabilizer (CB14030E)

Details
Written by: Newton C. Braga

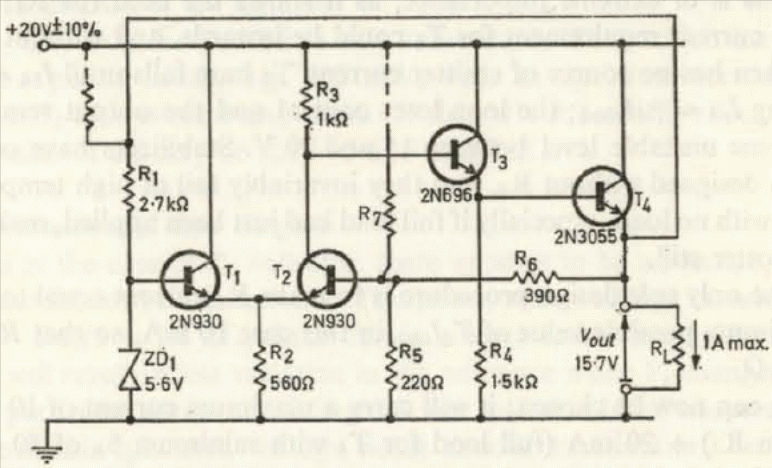

The circuit shown is from old English documentation and can be made with BC548 transistors for low power ones. The 2N3055 must be mounted on a heat radiator.
