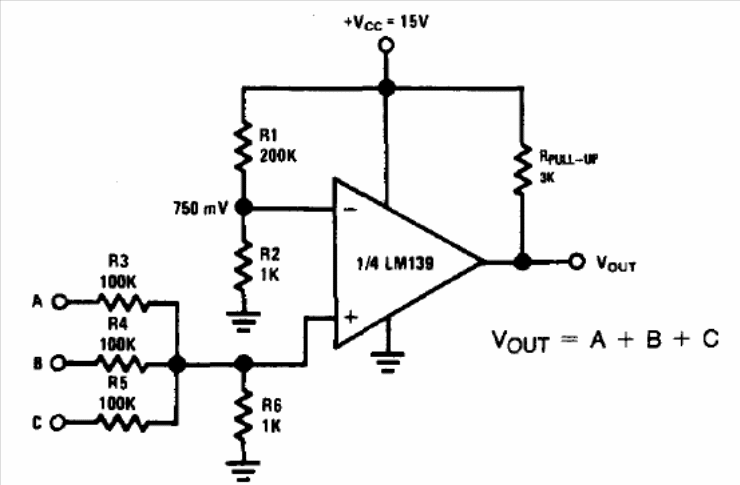

The presented logical configuration uses one comparator of the four existing in an LM139 or equivalent. The circuit was found in the National Semiconductor Linear Applications Handbook of 1994. The power supply does not have to be symmetrical.
