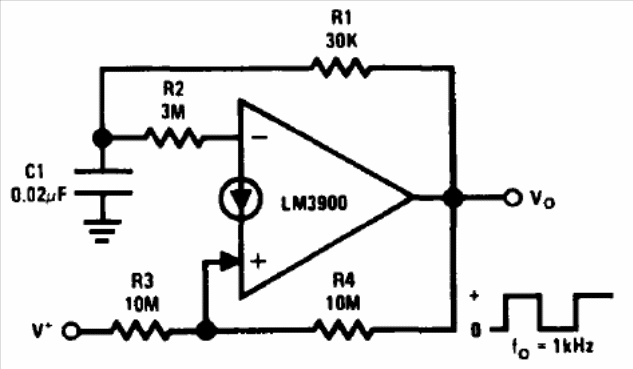

The circuit below is suggested by National Semiconductor in its 1994 Linear Applications Handbook. The base is an LM3900 transconductance operational amplifier. The capacitor can be changed to generate signals from other frequencies.
Rectangular 1 kHz generator LM3900 (CB14193E)
