Voltage Regulator (CB14119E)

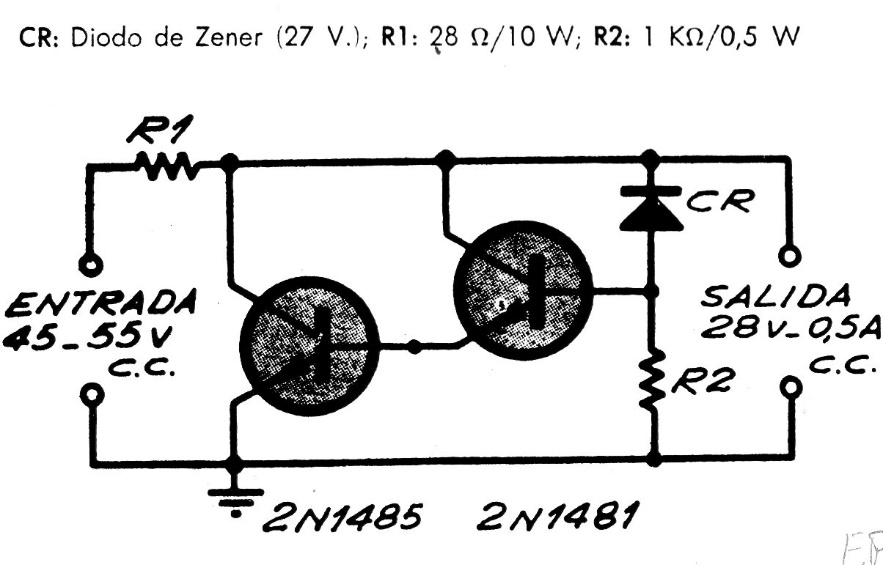

We found this parallel regulator in a 1973 publication. Transistors admit equivalents and the output voltage can be modified by changing the zener.

| Clique na imagem para ampliar |

Error Amplifier and Trigger Generator (CB19981E)
This circuit was found in old documentation. The components can be replaced by modern ones. The...
Active Tone Control (CB18728E)
This transistor circuit consists of a well-known bass and treble control configuration. The...
Fast Photo Darlington (CB14647E)
With the circuit shown, you can have a fast response with a Darlington configuration. The circuit is...
