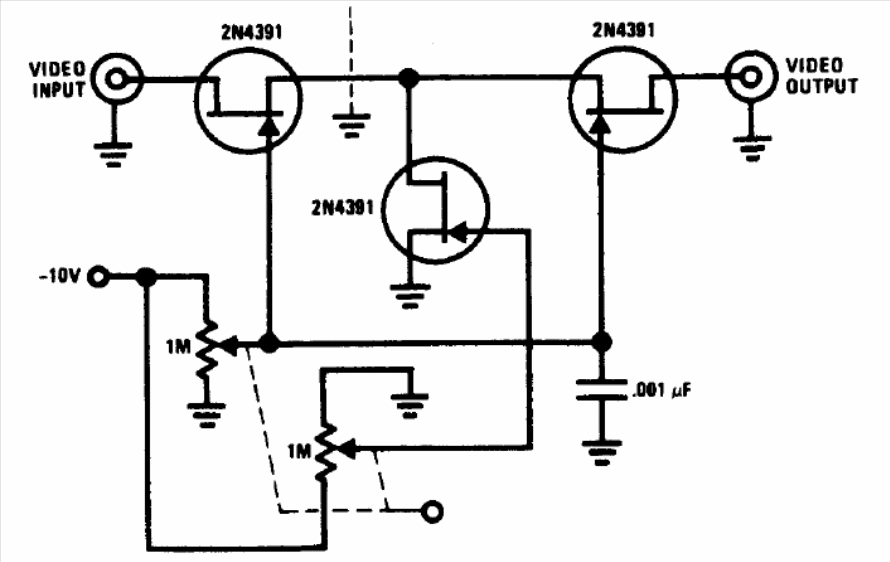

The circuit below uses common JFET transistors, which can be the BF245 or MPF102 amplifying video signals with variable gain. The circuit was found in the 1994 National Semiconductor Linear Applications Handbook.
| Clique na imagem para ampliar |
Variable Gain Video Amplifier (CB14145E)
- Details
- Written by: Newton C. Braga
