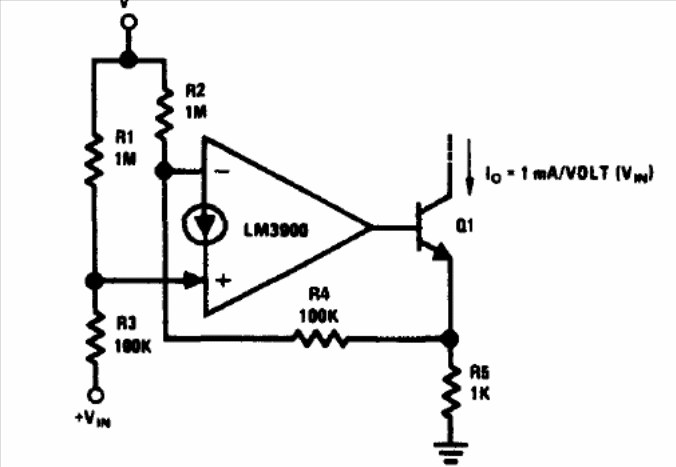

The circuit below is a 1 mA current drain using a transconductance operational amplifier. The circuit is suggested by National Semiconductor in the Linear Applications Handbook and the transistor can be a BC548.
| Clique na imagem para ampliar |
Voltage Controlled Current Drain (CB14212E)
