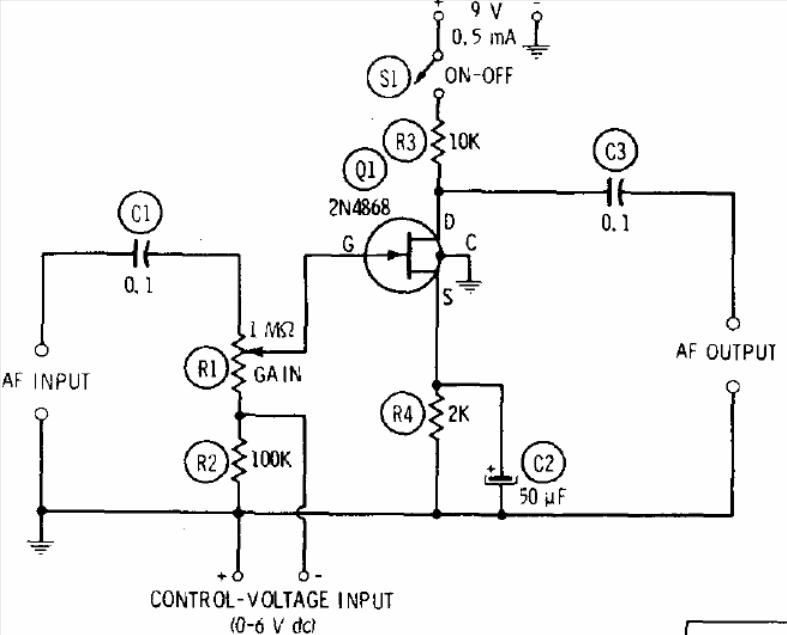

In this circuit, from a 1977 FET documentation, the FET can be BF245 or MPF102. The circuit automatically controls the level of an audio signal adjusted in the potentiometer. The maximum gain is 10 and the output has 1 Vrms.
| Clique na imagem para ampliar |
