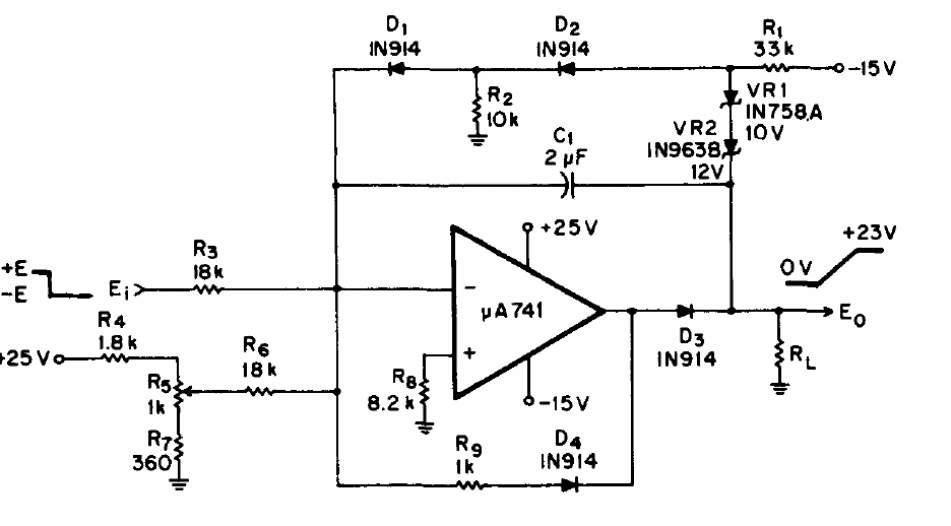

This circuit was obtained in a 1970 engineering documentation. The operational is the 741, but other operational ones can be used. The power supply must be symmetrical.
| Clique na imagem para ampliar |
Fast Recovery 741 Integrator (CB13749E)
- Details
- Written by: Newton C. Braga
