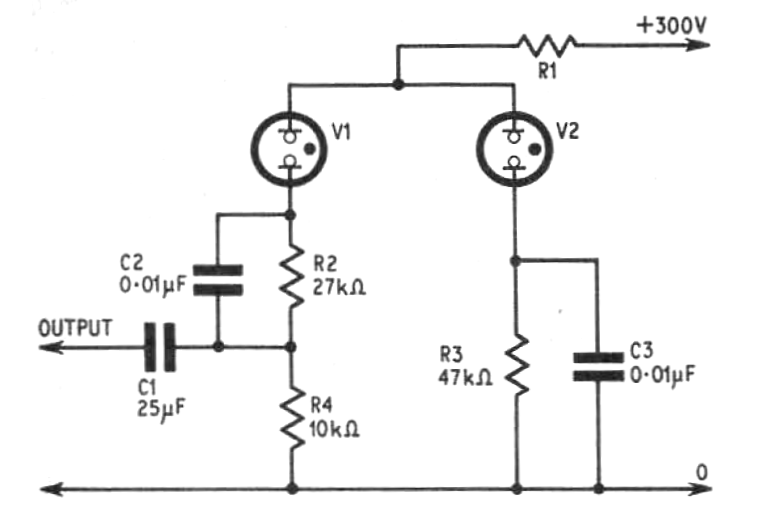

This circuit is from a 1966 publication. The frequency depends on the capacitors and on R1 which can have values between 47k and 2.2 M typically. The supply voltage can be between 200 and 300 V.
| Clique na imagem para ampliar |
Neon Multivibrator (CB14013E)
- Details
- Written by: Newton C. Braga
