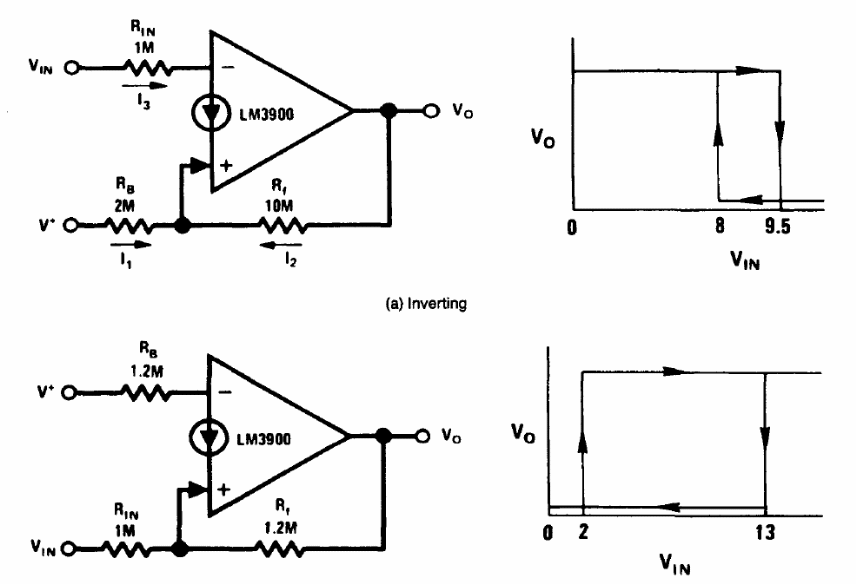

In the figure below we have two triggers made with the LM3900 transconductance operational amplifiers. Circuits are suggested by National Semiconductor in its Linear Applications Handbook, published in 1994.
| Clique na imagem para ampliar |
Schmitt Triggers LM3900 (CB14210E)
