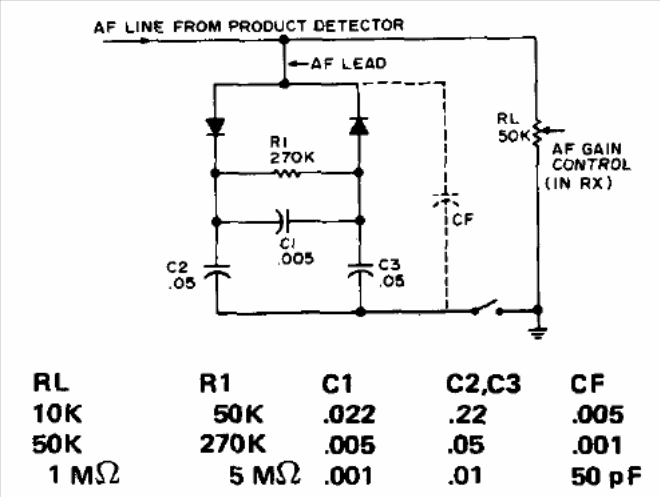

This circuit was obtained in a publication for radio amateurs of 1977. It is used to reduce the noise of receivers being installed next to the volume control. The diodes are general-purpose types like the 1N4148.
| Clique na imagem para ampliar |
Noise Limiter 2 (CB13623E)
- Details
- Written by: Newton C. Braga
