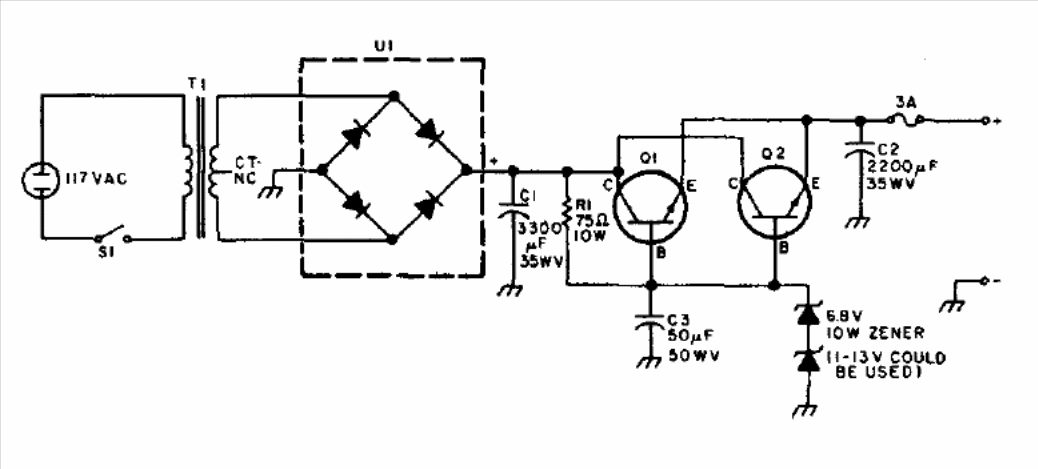

This source circuit was obtained in a 1976 publication for radio amateurs. The transistors can be the TIP41. The bridge diodes can be 1N5402 or equivalent and the transformer has 12.6 V x 3 A of secondary. Transistors must be mounted on heat radiators.
