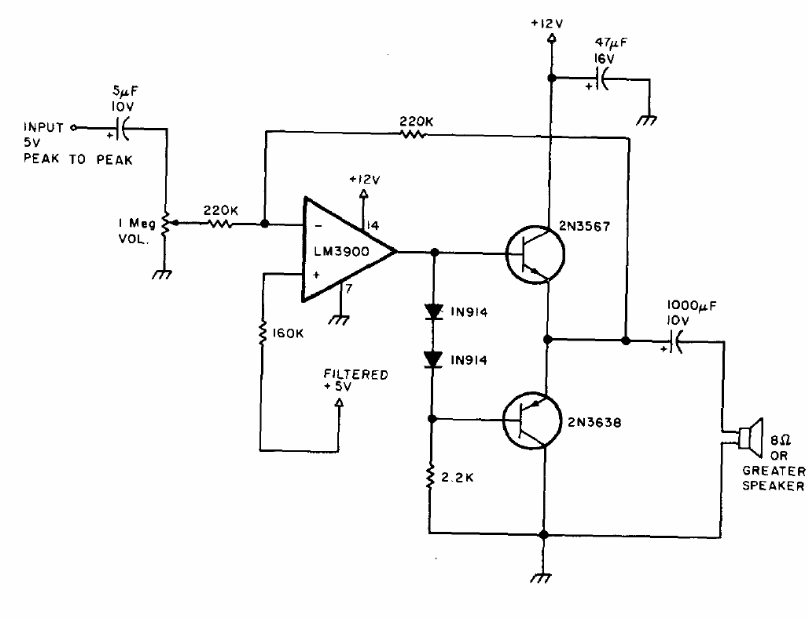

In the figure, from a documentation from the 70s, we have a few-watt amplifier for general use. The output transistors can be BD135 and BD136 with heatsinks and the power source must have an additional voltage of 5 V for polarization.
