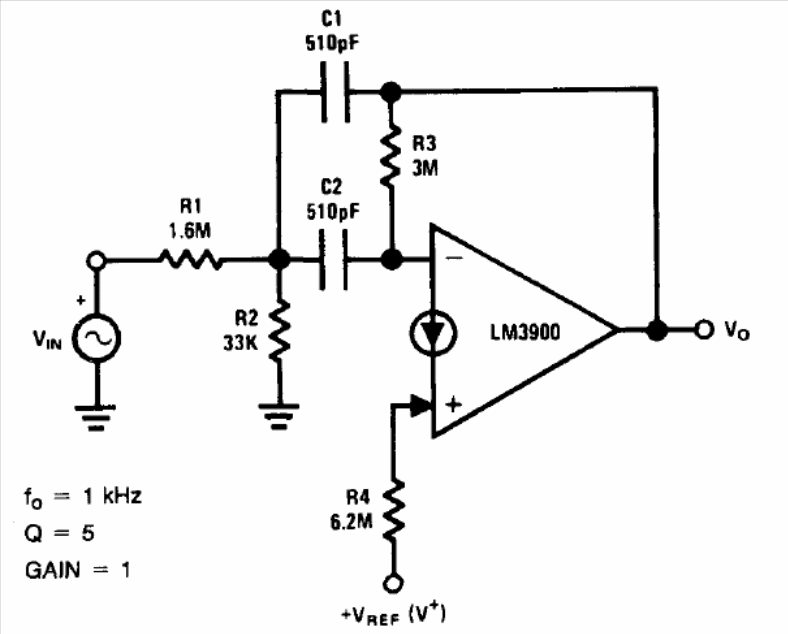

Based on the LM3900 transconductance amplifier, this circuit lets only pass frequencies close to 1 kHz. C2 and C3 can be changed to operate on other frequencies. The circuit is from the Linear Applications Handbook by National Semiconductor.
