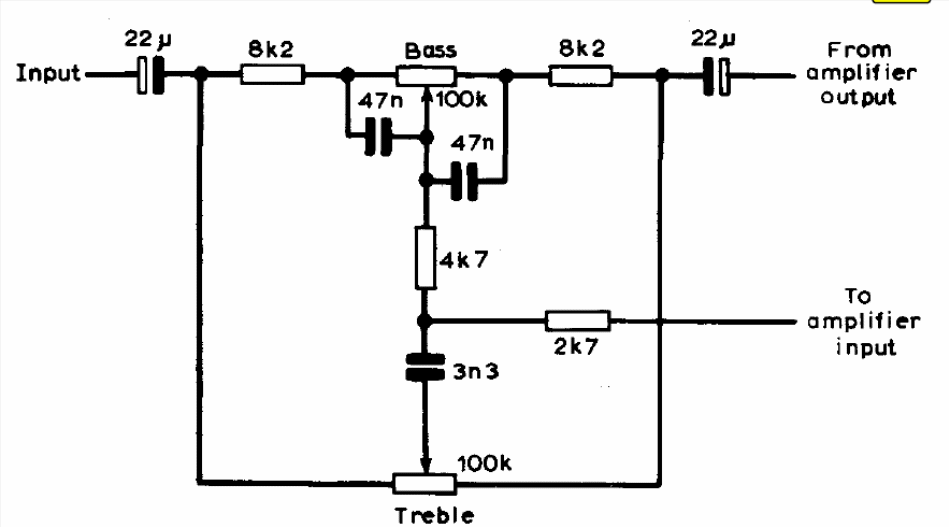

This is the traditional configuration of Baxandall bass and treble control, using passive components. Signal attenuation must be considered when using the circuit that must have amplifying stages.
| Clique na imagem para ampliar |
Baxandall Tone Control (CB14009E)
- Details
- Written by: Newton C. Braga
