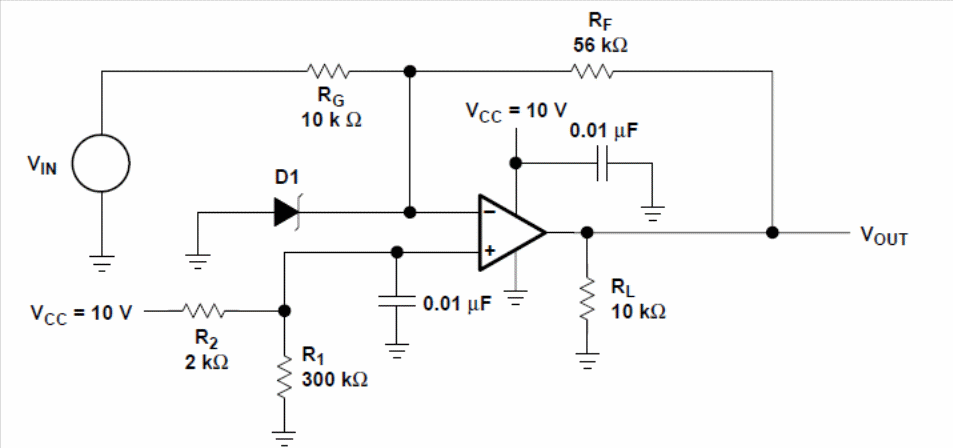

This circuit was found in the Texas Instruments Operational Amplifiers manual and can be applied to almost any operational amplifier. The Rf / Rg ratio gives the circuit gain and RL gives the output impedance. The input impedance is 10 k ohms.
