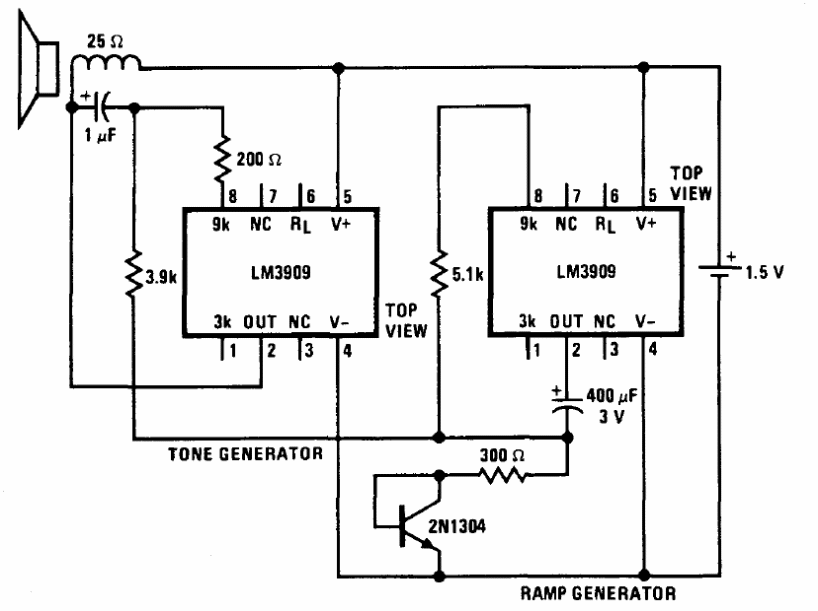

We found this circuit in a technical documentation on the National Semiconductor LM3909. The transistor can be general-purpose like the BC548 and the capacitor determines the sound effect.
| Clique na imagem para ampliar |
Modulated Siren LM3909 IR5687S CB14290E (CB14290E)
