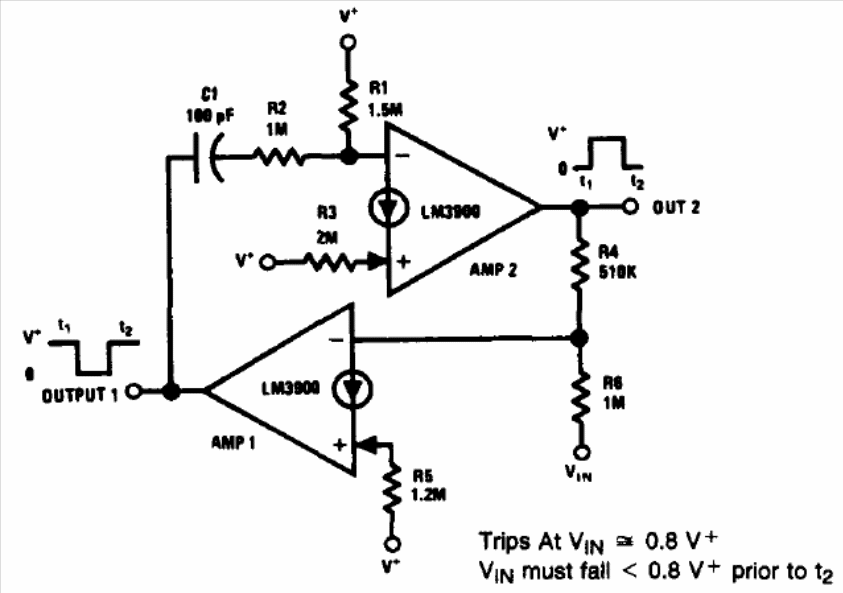

We found this circuit in the 1994 National Semiconductor Linear Applications Handbook. The circuit is based on two LM3900 operational transconductance amplifiers. The circuit must be powered by a symmetrical source.
| Clique na imagem para ampliar |
Monostable LM3900 (2) (CB14205S)
- Details
- Written by: Newton C. Braga
