Phonocaptor Preamplifier with Tone Control (CB13925E)

Details
Written by: Newton C. Braga

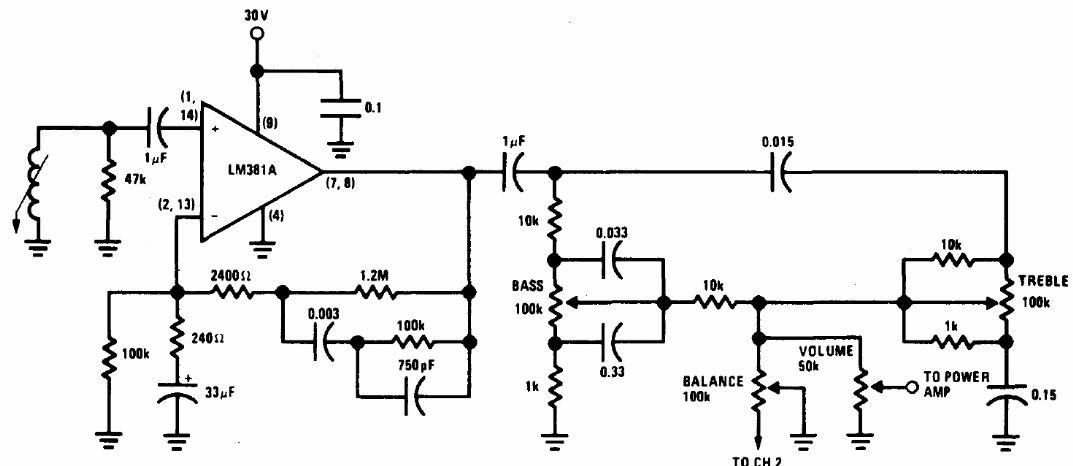

We found this circuit in the Audio Handbook of the National Semiconductor of 1977. The circuit is used to recover vinyl media for recording on other media.
