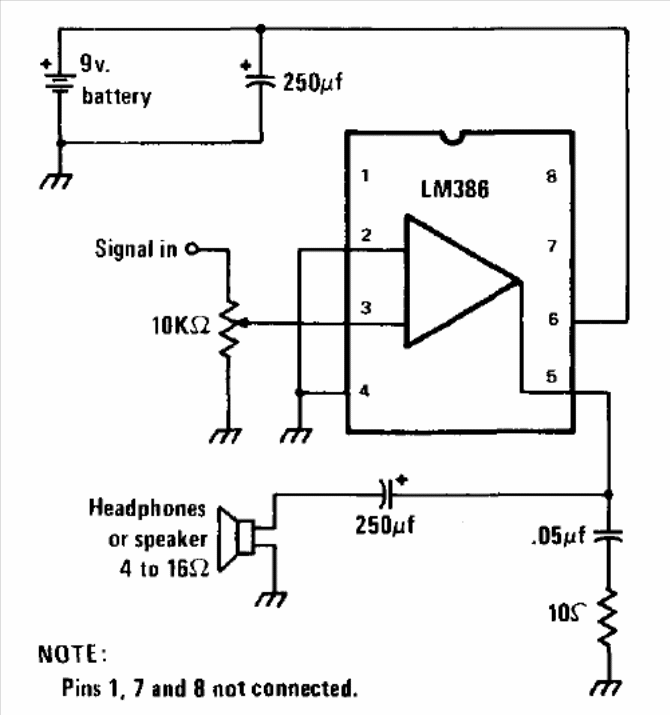

We found this circuit, quite common in technical publications, in a 1978 documentation. The circuit is for low impedance headphones being powered by 9 V batteries or by 6 V of 4 medium batteries.
| Clique na imagem para ampliar |
Headphone Amplifier LM386 (CB13672E)
- Details
- Written by: Newton C. Braga
