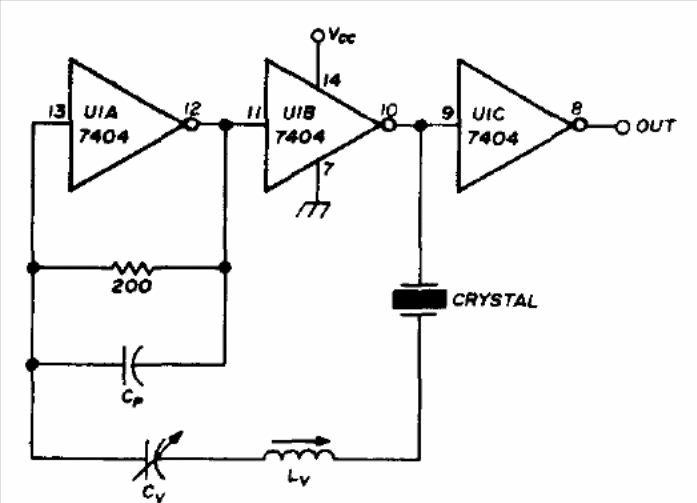

This circuit can generate signals up to 20 MHz, depending on the crystal. The circuit is TTL and must be powered by a voltage of 5 V. L1 must have approximately 100 uH and the adjustable capacitor is 0-100 pF. The circuit provides a rectangular signal serving as a clock for TTL circuits and microcontrollers.
| Clique na imagem para ampliar |
