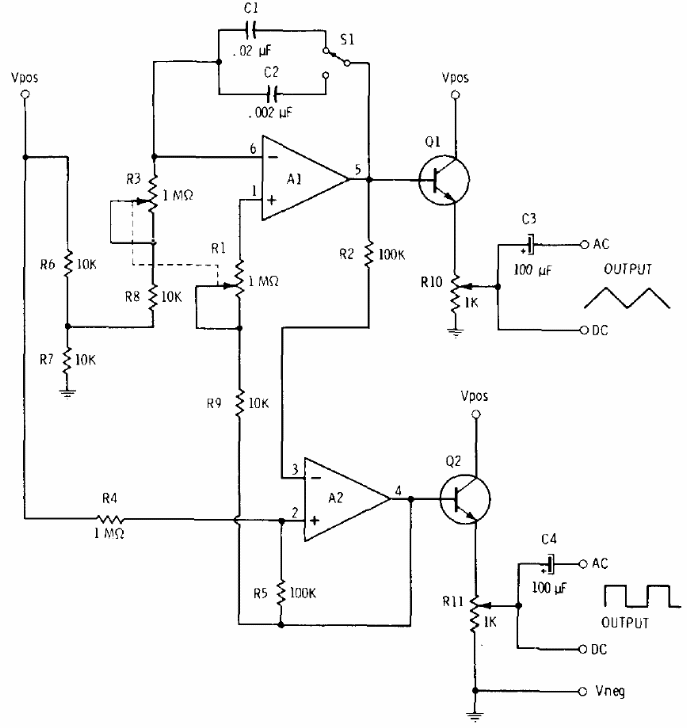

This circuit was found in a 1975 technical publication. The circuit can be designed with 741 operational amplifiers and the transistors can be the BC548. The power supply must be symmetrical. Equivalent operational amplifiers can be used. The circuit generates signals in two bands: 15 to 150 Hz and 150 to 4 800 Hz.
