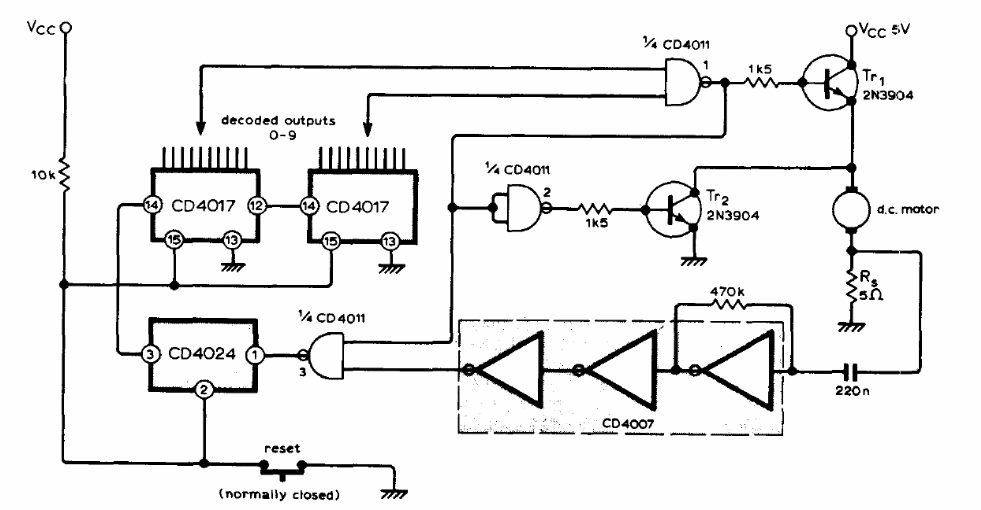

This circuit controls an engine's lap count. We found it in a technical publication from the 1970s. The transistors can be the BC548 for a small DC motor or a BD135 for TR1 if the motor has a current of up to 500 mA.
| Clique na imagem para ampliar |
