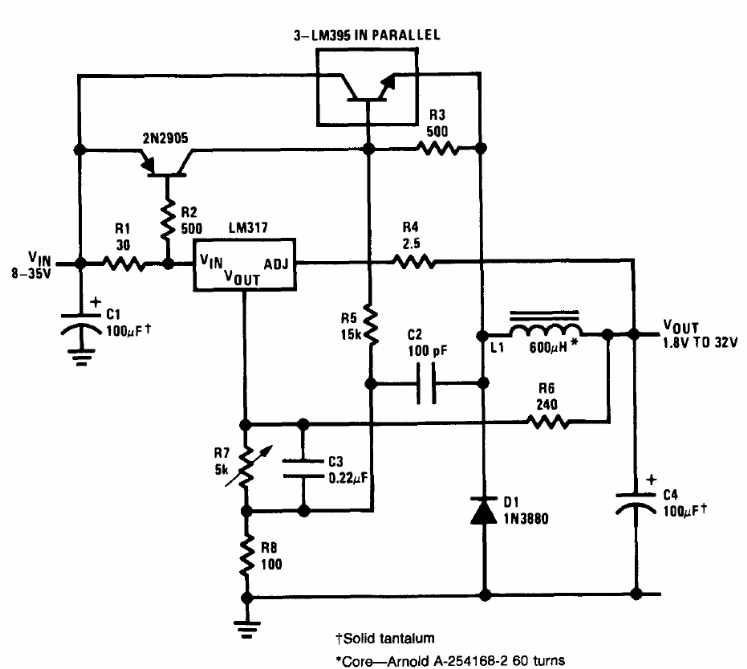

We found this switching circuit in a technical documentation from National Semiconductor. The integrated circuits and the transistor must be equipped with heat radiators.
| Clique na imagem para ampliar |
4 A Switched Regulator LM317 (CB14306E)
- Details
- Written by: Newton C. Braga
