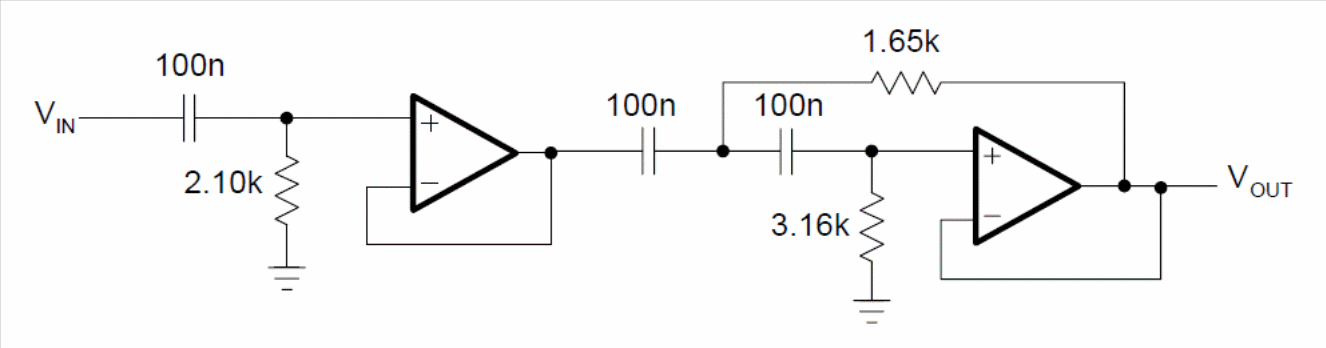

This circuit was obtained in a Texas Instruments publication. It is a third-order filter with operational amplifiers, which may be from the Texas Instruments TL series. The components can be calculated for operation at other frequencies.
