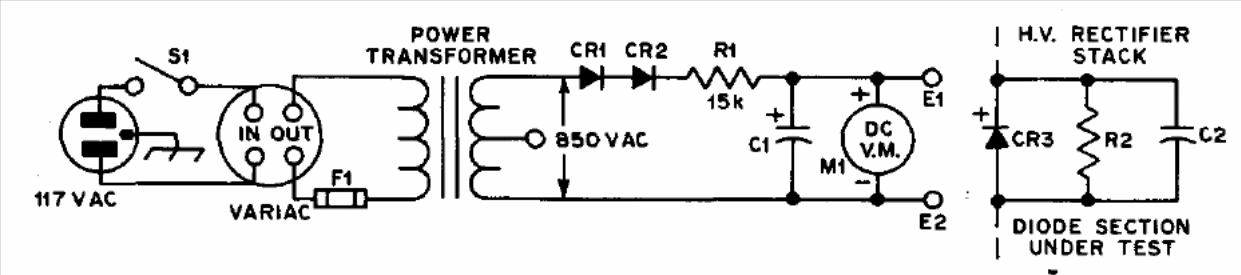

This circuit tests the reverse voltage of power diodes. The transformer is high voltage and so are the rectifier diodes. The circuit is from a 1976 QST magazine.
| Clique na imagem para ampliar |
Power Diodes Test (CB13948E)
- Details
- Written by: Newton C. Braga
