Controlled Gain Operational (CB13627E)

Details
Written by: Newton C. Braga

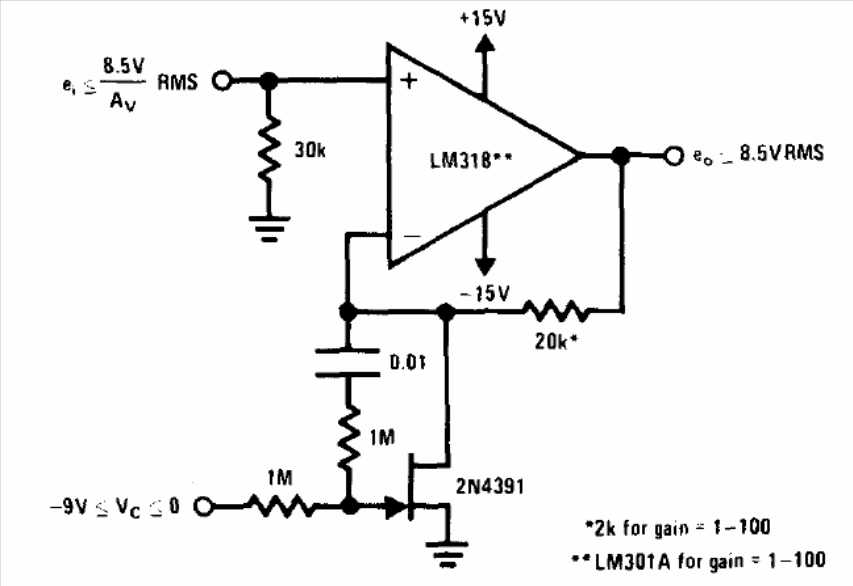

We can control the gain of this operational in the range of 1 to 1000 by the voltage applied to the FET. The FET can be BF245 or MPF102 and we can use other operational ones. The power supply must be dual.
