30 W Amplifier (CB13670E)

Details
Written by: Newton C. Braga

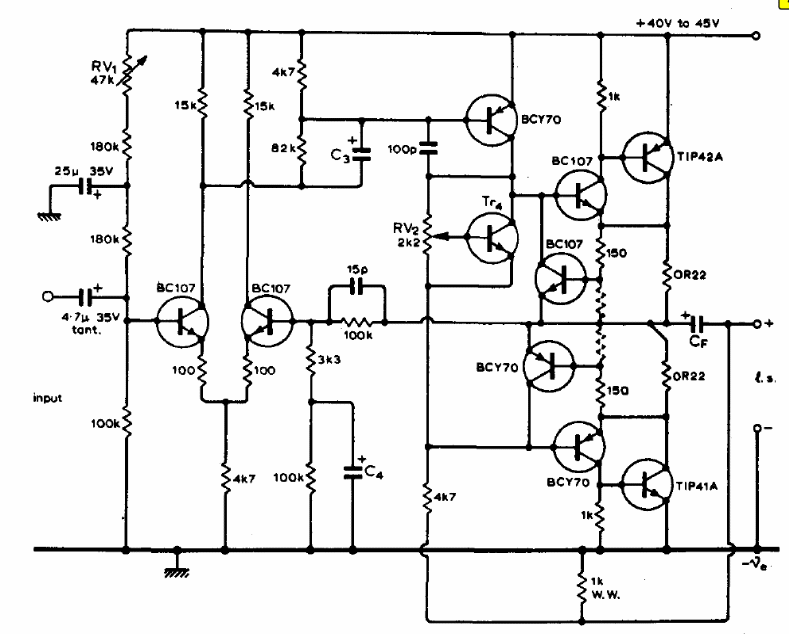

This circuit is from a 1977 Signetics manual. BC107 transistors can be replaced with BC547 and BCY70 with BD136. The output transistors must be equipped with heat radiators and the source must provide at least 2 A.




| Clique na imagem para ampliar |
