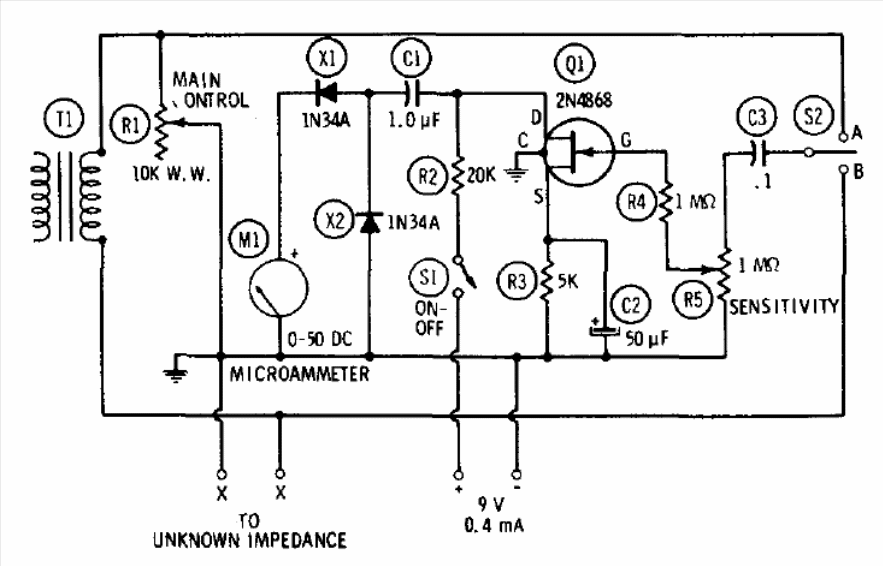

The FET for this circuit from a 1977 documentation can be BF245 or MPF102. The circuit measures impedances indicated by an instrument. The frequencies normally used in the test are between 400 and 500 Hz.
| Clique na imagem para ampliar |
Impedance Meter (CB13947E)
- Details
- Written by: Newton C. Braga
