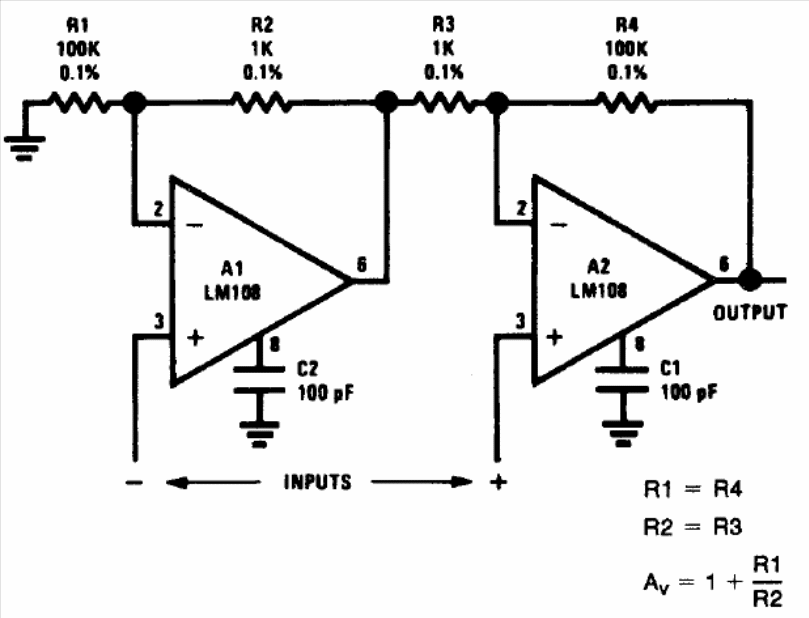

This amplifier with differential input uses two old op amps but can be implemented with modern op amps. The circuit is from the Linear Applications Handbook of the National Semiconductor of 1994. The circuit must use a symmetrical power supply with voltage according to the operational ones.
| Clique na imagem para ampliar |
