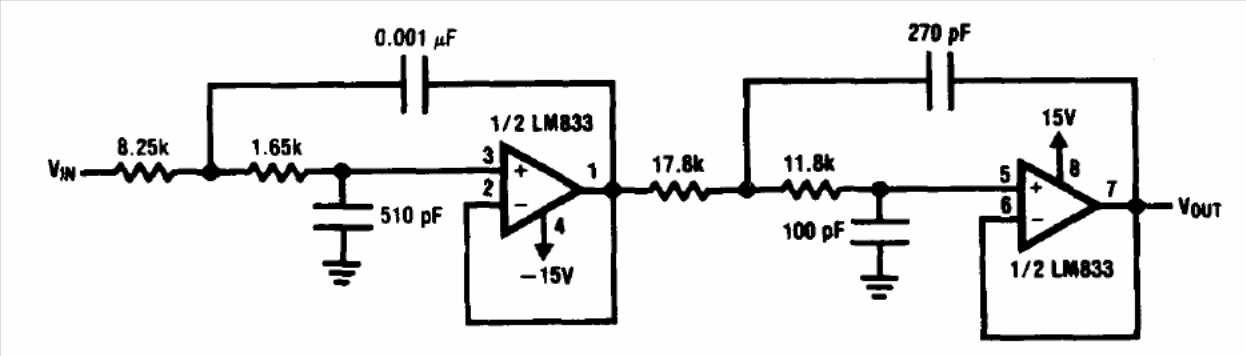

We found this circuit in the Linear Applications Handbook of the National Semiconductor of 1994. The integrated used is uncommon today, but the configuration can be implemented with more modern operators. The power supply must be symmetrical.
| Clique na imagem para ampliar |
