Inductance Meter (CB13944E)

Details
Written by: Newton C. Braga

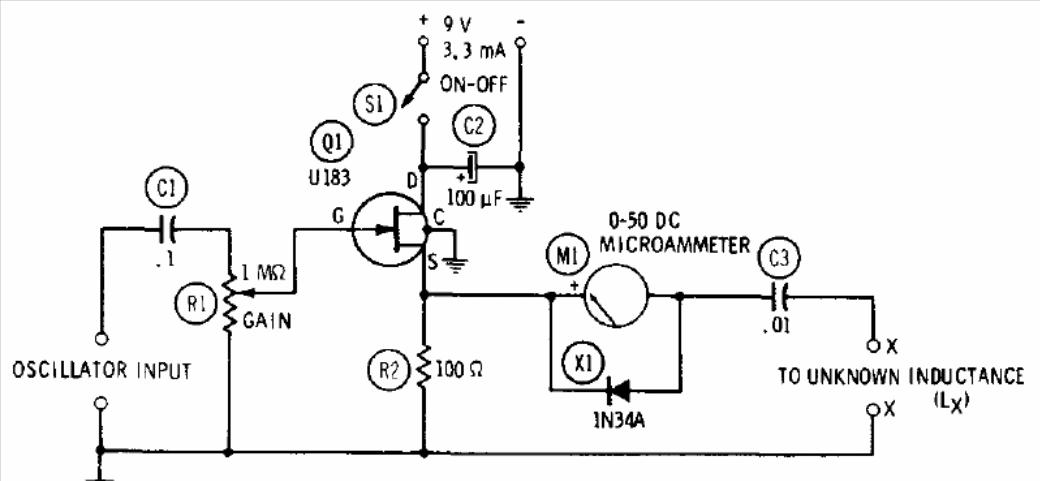

This circuit was obtained from a 1977 FET manual. The circuit measures inductances using a signal generator as a reference. The range is from 60 uH to 60 000 H. The FET can be a BF245.
