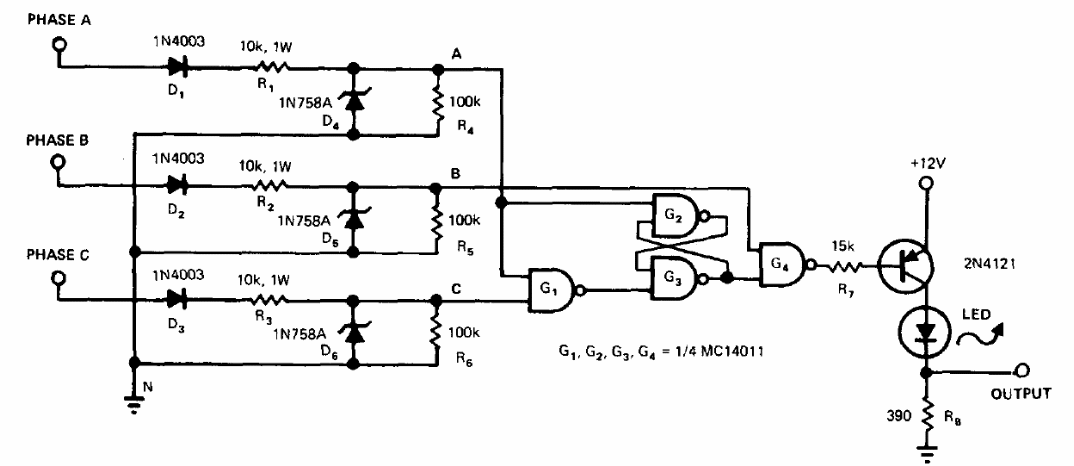

The purpose of this circuit is to monitor the phase pulses of a logic circuit, checking if they are in sequence. The circuit is from a technical documentation from the 70s. The transistor can be the BC558 and the zener diodes are 5 V. The diodes can be os1N4004 as well.
