Bridge Current Amplifier MC34071 (CB15290E)

Details
Written by: Newton C. Braga

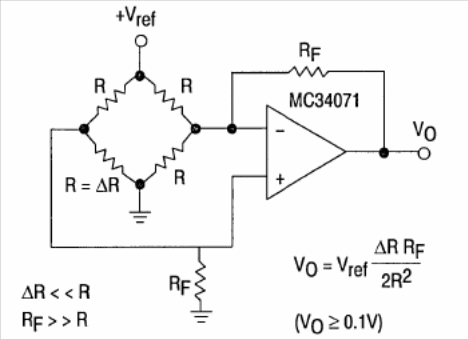

Other operational amplifiers in the series, such as the MC34072, MC34074, MC35071, MC35072, MC35074 or MC33071 can be used in this configuration found in the Motorola Linear Interface ICs of 1993. The formulas next to the diagram make it possible to calculate the components.
