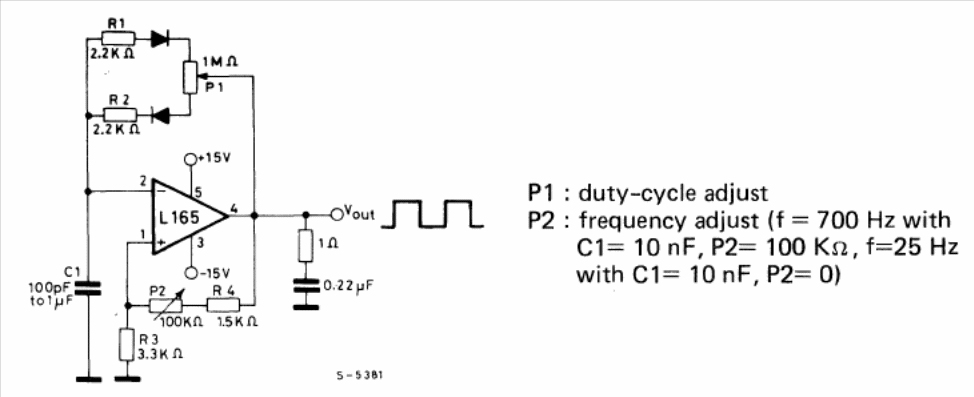

We found this oscillator that can supply up to 3 A of output in the 1982 SGS linear integrated circuit manual. The frequency depends on C1 with the information given in the diagram. P1 controls the active cycle.
| Clique na imagem para ampliar |
Square Power Generator (CB15143E)
