Precision AC to DC Converter (CB14422E)

Details
Written by: Newton C. Braga

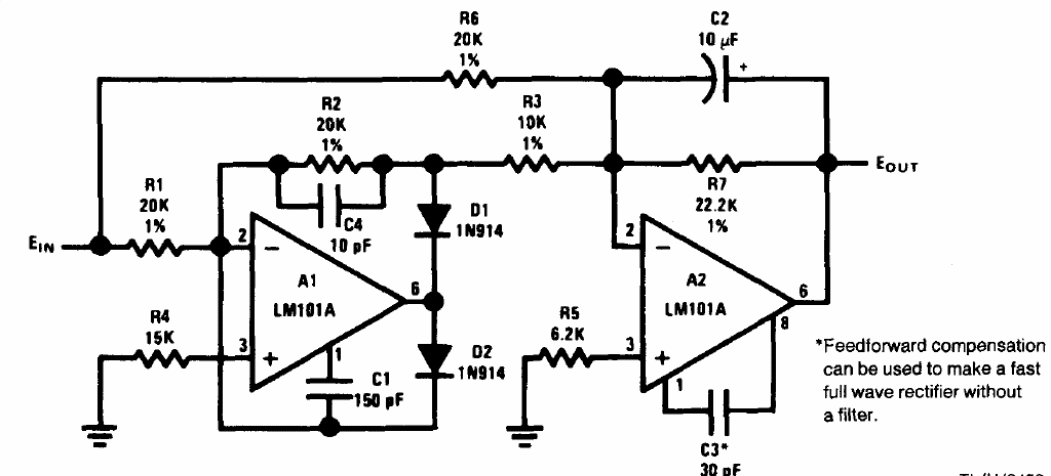

The circuit shown is from 1994 National Semiconductor documentation but can be implemented with more modern operational amplifiers. The power supply must be symmetrical.
