6 V Assisted Ignition (CB14813E)

Details
Written by: Newton C. Braga

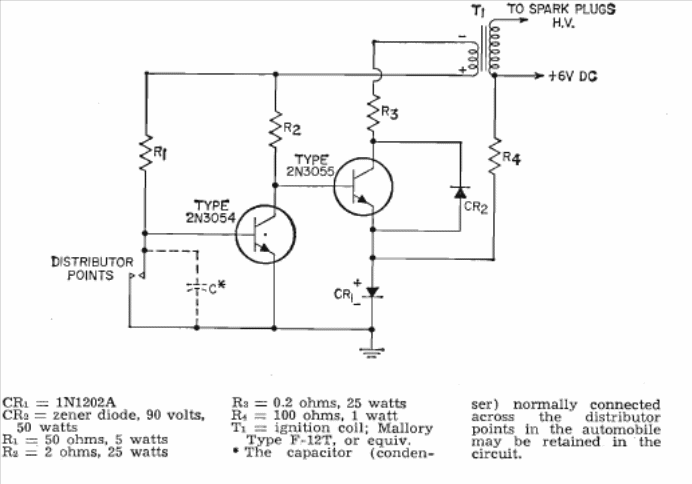

This circuit, for vehicles with a 6 V battery, was found in the 1964 RCA transistors manual. Transistor 2N3054 can be replaced by a TIP41.
